Faster, cancellable booleans: NeoSCAD's patches for manifold-rust

NeoSCAD’s geometry runs on manifold-rust, a pure-Rust port of Manifold, the C++ geometry kernel the OpenSCAD nightly uses with --backend=manifold. The port follows the same Manifold release, 3.5.2. A pure-Rust kernel is what lets NeoSCAD build one engine for the command line, the desktop apps and your browser.

While building NeoSCAD we changed manifold-rust in a few places. NeoSCAD carries those changes as patches in its repository (vendor/patches/manifold-rust/, explained in vendor/README.md). A patch you carry is a patch you maintain, and the changes are useful to anyone using the library, so we have ported them to manifold-rust’s current main and offered them back as pull requests. NeoSCAD 0.3.1 moves to manifold-rust 0.15.0 and vendors exactly the code in those pull requests. This post explains what each one does.

NeoSCAD has shipped these speedups since 0.1, so 0.3.1 isn’t faster than 0.3.0; it runs the same changes in the form offered upstream. The “before” numbers below are manifold-rust’s own main.

Each of these changes leaves manifold-rust’s output exactly as it was: the same triangles, in the same order, at any thread count. NeoSCAD depends on that, because its exports must be byte-identical however many cores the machine has.

Triangulating text and many-hole polygons: up to 9× faster #

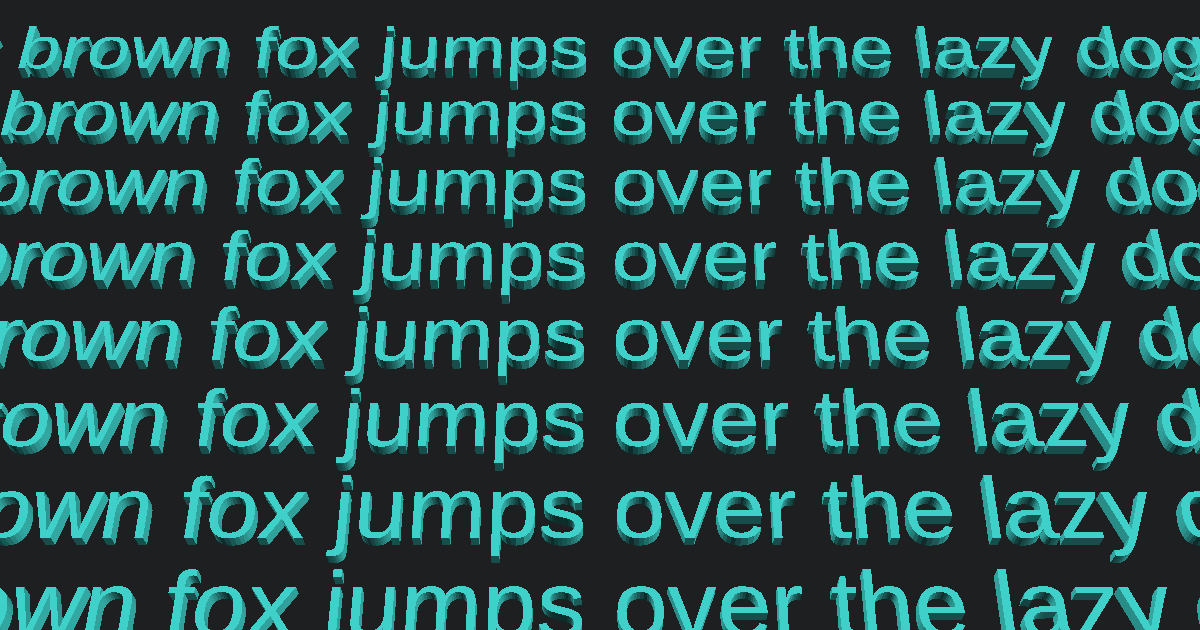

When a 2D shape is turned into triangles, each hole is first joined to an outer outline by a “keyhole” cut. The code that finds where to cut walked every outer outline for every hole, so its cost grew with the square of the number of outlines. A page of extruded text is exactly that worst case: thousands of letter outlines, many with a hole or two.

Two changes fix it:

• the search visits an outline’s points in place instead of rebuilding a list of them for every hole;
• each outline keeps a bounding box, and the search skips outlines that can’t possibly hold the cut. The box test is derived from the search’s own conditions, so it never skips one the search would have used.

Triangulation time alone, best of three runs (one for 25,000), manifold-rust’s main against the two pull requests on an Apple M4 Pro with other work running; the triangles are identical before and after, and a randomised comparison of 9,000 triangulations found no difference. One outline with many holes gains less, because there is only one outline to search.

Try a text-heavy model in your browser: 40 lines of extruded text, or a plate with 5,041 holes.

Parallel booleans: Menger sponge in about half the time #

With its parallel feature on, manifold-rust already used several cores in places, but much of a large boolean still ran on one: cleaning up the mesh’s edges, assembling the result, and sorting the geometry. (C++ Manifold runs these steps in parallel; the port hadn’t yet.) These now run in parallel, built so that each step produces exactly what the one-core version does.

Both columns have the library’s parallel feature on: an Apple M4 Pro with 14 cores, with other work running (load average 4 to 7), three interleaved runs each. The result is the same mesh, byte for byte, at 1, 3, 8 and 14 threads. A second change lets a union() of many children merge up to four pairs at once, at some cost in peak memory.

One caveat: in the same model, uniting the 585 small blocks it cuts away into one solid is a little slower with this change (0.54 s to 0.61 s). Splitting small jobs across cores costs more than it saves, so two of the new parallel steps start only on meshes ten times larger than C++ Manifold’s threshold (100,000 half-edges rather than 10,000); at C++'s threshold that step took 0.92 s.

Cancelling a long boolean #

NeoSCAD lets you cancel a render, and stops a model that passes its time or memory limit, even in the middle of one huge boolean. Manifold’s C++ library checks for cancellation inside its edge-intersection loop; the Rust port didn’t, so a cancel could wait for the whole step to finish. The port now checks there too, as C++ does.

A bug that was already fixed #

NeoSCAD’s first patch fixed an edge-collapse bug that could fill in a concave corner after a union, changing the solid’s volume. In BOSL2’s cubetruss, a notch of 7.3 mm³ disappeared. When we ported it, we found that Lars Brubaker had already fixed it upstream with a different change (4a99dc4), and C++ Manifold’s master gets it right too, so NeoSCAD 0.3.1 drops its patch. We are offering our regression test instead, so the fix stays fixed. Open the cubetruss model to see it render with the right volume, about 85,017 mm³ (85,024 with the bug).

The pull requests #

Two NeoSCAD patches aren’t on the list: a size threshold tuned to NeoSCAD’s own workloads, and the exact shape of its cancellation API. They are NeoSCAD’s choices rather than general fixes, so they stay in NeoSCAD.

Thanks to Lars Brubaker for manifold-rust, and to Emmett Lalish and the Manifold contributors for the library it ports. NeoSCAD is open source, under GPL-2.0-or-later, at github.com/neoscad/neoscad.
